Special Feature:
- Panel PC provides Water Proof
- Touch Screen (Optional)
- Fanless Function.
- It can be easy mounted with Wall
- Information Mech.
- Ticket Mech. ...ect .
- Open-frame mechanical design for customized request.
- Support VESA75 / VESA100 Mounting Spec.
- Panel frame Water Proof : IPX3 Level
- Touch Panel : 3M , Resistance Type .
- 8 Wires for 15.1" / 12.1" Panel PC

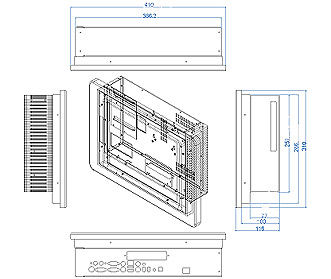

Panel PC :
| Dimension: |
panel: 9 H x 360 W x 280D mm
Case: 96 H x 337.8 W x 257.8 D mm |
| Weight: |
8 Kgs(lnclude M/B) |
Fanless Panel PC :
| Dimension: |
panel: 9 H x 360 W x 280D mm
Case: 101 H x 335W x 257.8 D mm |
| Weight: |
9 Kgs(lnclude M/B) |
Order Information:
| M/B Model |
CPU |
CD- ROM |
HDD |
PCI |
Material |
|
| LV866B-2R73 |
VIA EDEN 733Mhz |
option with PCI |
3.5" |
1 |
Aluminum |
- |
| MV823AFER10E |
VIA EDEN 1Ghz |
option with PCI |
3.5"/2.5"(Fanless) |
1 |
Aluminum |
Yes |
| CV866C-1R73 |
VIA EDEN 733Mhz |
option |
3.5"/2.5"(Fanless) |
- |
Aluminum |
Yes |
| (Optional : Touch Panel) |
|
|
|
|
|
|
 |
